h3o is a lightweight R package for interacting with Uber’s H3 Geospatial Indexing system. The R package uses extendr to wrap the eponymous h3o Rust crate, which offers a pure Rust implementation of H3, so no linking to Uber’s H3 C library. The package is also intended to work with the {sf} package for geometric operations and as a bonus represents the H3 class as {vctrs}, so they work seamlessly within a tidyverse workflow.
Installation
You can install the release version of h3o from CRAN with:
install.packages("h3o")Or you can install the development version from GitHub with:
# install.packages("pak")
pak::pak("extendr/h3o")Example
H3 vectors can be created from POINT geometry columns (sfc objects) defined by sf.
library(h3o)
library(dplyr)
library(sf)
library(tibble)
xy <- data.frame(
x = runif(100, -5, 10),
y = runif(100, 40, 50)
)
pnts <- st_as_sf(
xy,
coords = c("x", "y"),
crs = 4326
)
pnts |> mutate(h3 = h3_from_points(geometry, 5))
#> Simple feature collection with 100 features and 1 field
#> Geometry type: POINT
#> Dimension: XY
#> Bounding box: xmin: -4.882684 ymin: 40.05321 xmax: 9.888865 ymax: 49.80712
#> Geodetic CRS: WGS 84
#> First 10 features:
#> geometry h3
#> 1 POINT (6.784454 44.55552) 851f9ad3fffffff
#> 2 POINT (7.45967 45.05904) 851f985bfffffff
#> 3 POINT (4.93601 41.74787) 85396a63fffffff
#> 4 POINT (4.600331 41.49313) 853941a3fffffff
#> 5 POINT (4.811129 46.83189) 851f9503fffffff
#> 6 POINT (-2.283214 44.58426) 851848c3fffffff
#> 7 POINT (8.25868 45.06561) 851f9863fffffff
#> 8 POINT (5.945258 45.71229) 851f9167fffffff
#> 9 POINT (-0.8034847 41.24346) 8539700bfffffff
#> 10 POINT (6.936289 47.17417) 851f83dbfffffffH3 vectors also have an st_as_sfc() method which allows conversion of H3 cell indexes into sf POLYGONs.
# replace geometry
h3_cells <- pnts |>
mutate(
h3 = h3_from_points(geometry, 4),
geometry = st_as_sfc(h3)
)

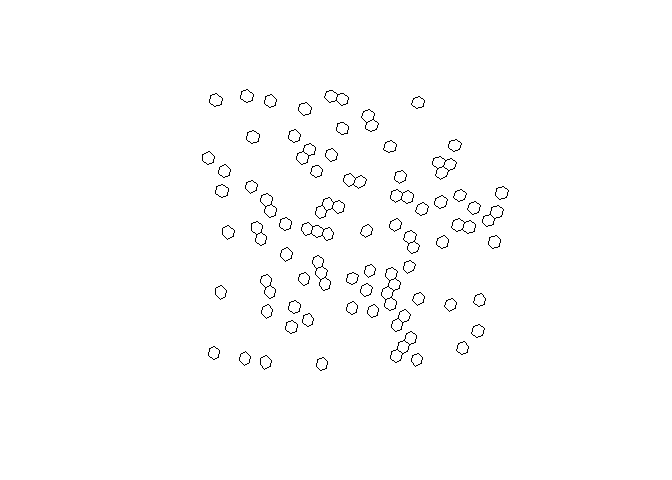

# plot the hexagons
plot(st_geometry(h3_cells))
H3 cell centroids can be returned using h3_to_points(). If sf is avilable, the results will be returned as an sfc (sf column) object. Otherwise it will return a list of sfg (sf geometries).
# fetch h3 column
h3s <- h3_cells[["h3"]]
# get there centers
h3_centers <- h3_to_points(h3s)
# plot the hexagons with the centers
plot(st_geometry(h3_cells))
plot(h3_centers, pch = 16, add = TRUE, col = "black")
H3Edge vectors representing the boundaries of H3 cells can be created with h3_edges(), h3_shared_edge_pairwise(), and h3_shared_edge_sparse().
cell_edges <- h3_edges(h3s[1:3])
cell_edges
#> [[1]]
#> <H3Edge[6]>
#> [1] 1141f9adffffffff 1241f9adffffffff 1341f9adffffffff 1441f9adffffffff
#> [5] 1541f9adffffffff 1641f9adffffffff
#>
#> [[2]]
#> <H3Edge[6]>
#> [1] 1141f985ffffffff 1241f985ffffffff 1341f985ffffffff 1441f985ffffffff
#> [5] 1541f985ffffffff 1641f985ffffffff
#>
#> [[3]]
#> <H3Edge[6]>
#> [1] 114396a7ffffffff 124396a7ffffffff 134396a7ffffffff 144396a7ffffffff
#> [5] 154396a7ffffffff 164396a7ffffffffWe’ve created a list of each cell’s edges. We can flatten them using flatten_edges().
cell_edges <- flatten_edges(cell_edges)
cell_edges
#> <H3Edge[18]>
#> [1] 1141f9adffffffff 1241f9adffffffff 1341f9adffffffff 1441f9adffffffff
#> [5] 1541f9adffffffff 1641f9adffffffff 1141f985ffffffff 1241f985ffffffff
#> [9] 1341f985ffffffff 1441f985ffffffff 1541f985ffffffff 1641f985ffffffff
#> [13] 114396a7ffffffff 124396a7ffffffff 134396a7ffffffff 144396a7ffffffff
#> [17] 154396a7ffffffff 164396a7ffffffffThese can be cast to sfc objects using st_as_sfc().
st_as_sfc(cell_edges)
#> Geometry set for 18 features
#> Geometry type: LINESTRING
#> Dimension: XY
#> Bounding box: xmin: 4.638203 ymin: 41.58031 xmax: 7.984481 ymax: 45.31479
#> Geodetic CRS: WGS 84
#> First 5 geometries:
#> LINESTRING (7.114327 44.3184, 7.191398 44.54827)
#> LINESTRING (6.563495 44.38585, 6.800861 44.23743)
#> LINESTRING (6.800861 44.23743, 7.114327 44.3184)
#> LINESTRING (6.953229 44.697, 6.638788 44.61554)
#> LINESTRING (7.191398 44.54827, 6.953229 44.697)Additionally, you can get the vertexes of H3 cell indexes using h3_to_vertexes() which returns an sfc_MULTIPOINT.
h3_to_vertexes(h3s)
#> Geometry set for 100 features
#> Geometry type: MULTIPOINT
#> Dimension: XY
#> Bounding box: xmin: -5.268602 ymin: 39.86661 xmax: 10.19141 ymax: 49.916
#> Geodetic CRS: WGS 84
#> First 5 geometries:
#> MULTIPOINT ((6.638788 44.61554), (6.563495 44.3...
#> MULTIPOINT ((7.42549 45.23518), (7.346976 45.00...
#> MULTIPOINT ((4.704843 41.96327), (4.638203 41.7...
#> MULTIPOINT ((4.342076 41.64357), (4.276867 41.4...
#> MULTIPOINT ((4.510629 46.94543), (4.440408 46.7...Bench marks
Since h3o is written in Rust, it is very fast.
Creating polygons
h3_strs <- as.character(h3s)
bench::mark(
h3o = st_as_sfc(h3s),
h3jsr = h3jsr::cell_to_polygon(h3_strs)
)
#> # A tibble: 2 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 h3o 450.4µs 494.05µs 1893. 9.85KB 14.6
#> 2 h3jsr 8.31ms 8.85ms 111. 2.7MB 94.6Converting polygons to H3 cells:
nc <- st_read(system.file("gpkg/nc.gpkg", package = "sf"), quiet = TRUE) |>
st_transform(4326) |>
st_geometry()
bench::mark(
h3o = sfc_to_cells(nc, 5, "centroid"),
h3jsr = h3jsr::polygon_to_cells(nc, 5),
check = FALSE
)
#> # A tibble: 2 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 h3o 4.92ms 5.27ms 185. 22.3KB 13.7
#> 2 h3jsr 28.35ms 29.47ms 33.6 753.9KB 2.24Converting points to cells
bench::mark(
h3o = h3_from_points(pnts$geometry, 3),
h3jsr = h3jsr::point_to_cell(pnts$geometry, 3),
check = FALSE
)
#> # A tibble: 2 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 h3o 105.2µs 123.9µs 7159. 848B 14.0
#> 2 h3jsr 2.64ms 3.1ms 319. 976KB 8.40Retrieve edges
bench::mark(
h3o = h3_edges(h3s),
h3jsr = h3jsr::get_udedges(h3_strs),
check = FALSE
)
#> # A tibble: 2 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 h3o 436.1µs 578.3µs 1506. 848B 15.5
#> 2 h3jsr 1.67ms 1.82ms 501. 67.9KB 12.3Get origins and destinations from edges.
# get edges for a single location
eds <- h3_edges(h3s[1])[[1]]
# strings for h3jsr
eds_str <- as.character(eds)
bench::mark(
h3o = h3_edge_cells(eds),
h3jsr = h3jsr::get_udends(eds_str),
check = FALSE
)
#> # A tibble: 2 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 h3o 13.3µs 18.4µs 48790. 7.86KB 14.6
#> 2 h3jsr 636.3µs 774.8µs 1242. 19.82KB 13.0
